Forest Machinery Bearings | Durable & High-Performance Bearings for Logging Equipment

Forest Machinery Bearings

Forest machinery bearings are highly engineered components selected for their robustness, load capacity, and, above all, their ability to survive extreme contamination through superior sealing technology. Choosing the right bearing and ensuring its proper installation and maintenance are vital for the productivity and reliability of forestry equipment.

Product Details

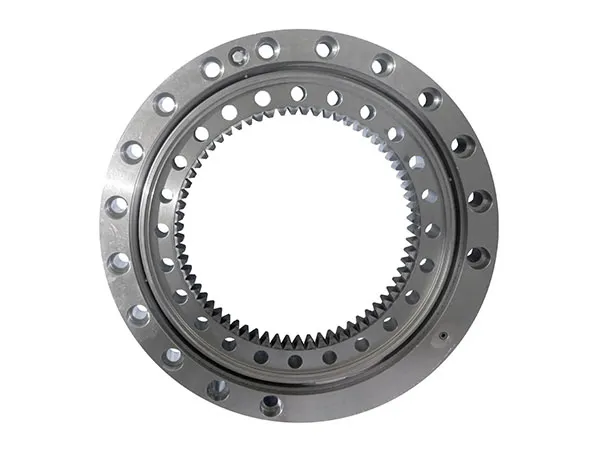

1. Role of Slewing Bearings in Forestry Machines

Slewing bearings (also called slewing rings) are core components in forestry machines, connecting the upper structure (rotating platform) and the undercarriage (chassis). They enable 360° rotation while handling axial, radial, and tilting moments, ensuring stable operation on rough terrain.

2. Key Models & Selection Criteria

Slewing bearings for forestry machines are typically selected based on:

Dimensions: Inner diameter, outer diameter, height (e.g., 1210, 1315, 1420—the first two digits indicate inner diameter, the last two outer diameter).

Structure Type:

Single-row four-point contact ball bearings (light-duty, e.g., 011 series): Common in compact forestry machines.

Double-row ball bearings (medium-duty, e.g., 02 series): Balance load capacity and cost.

Three-row roller bearings (heavy-duty, e.g., 13 series): Used in large forestry machines for extreme shock resistance.

Gear Type: External gear, internal gear, or gearless (selected based on hydraulic motor drive).

Example Models:

SKF SAR 1215 (single-row four-point contact, external gear).

Rothe Erde DKL 1420 (double-row ball, high dynamic load capacity).

ThyssenKrupp 13.40.1000 (three-row roller, for heavy-duty applications).

3. Key Advantages

High Load Capacity: Three-row roller designs withstand intense shocks and off-center loads during logging.

Sealing Performance: Multi-layered seals (e.g., IP66 rating) prevent sawdust, mud, and moisture ingress.

Durable Gearing: Induction-hardened gears for extended service life under high hydraulic motor torque.

Lightweight Construction: Some models use alloy steel (e.g., 42CrMo) to reduce weight.

4. Major Markets

Nordic Europe (Sweden, Finland): High demand for large forestry equipment (e.g., Ponsse, John Deere machines).

North America (Canada, U.S.): Focus on high-durability bearings for cold climates.

Asia (Russian Far East, Northeast China): Growing demand for mid-to-low-cost models.

5. Leading Brands & Models

Brand

Country

Representative Models

Key Features

SKF

Sweden

SAR 1215, SAR 1318

High precision, long-life lubrication

Rothe Erde

Germany

DKL 1420, DKL 1622

Double-row ball, dynamic load resistance

ThyssenKrupp

Germany

13.40.1000, 14.45.1250

Three-row roller, ultra-heavy duty

Luoyang

China

011.30.1000, 02.40.1120

Cost-effective, compatible with domestic machines

NSK

Japan

SPV 1520, SPV 1725

Low friction, energy-efficient design

6. Selection Guide

Compact Forestry Machines: Single-row four-point contact (e.g., SKF SAR series).

Mid-Sized Machines: Double-row ball (e.g., Rothe Erde DKL series).

Large Harvesters: Three-row roller (e.g., ThyssenKrupp 13 series).

For detailed technical specs or brand comparisons, provide operational conditions (e.g., load, speed) for tailored recommendations.

I. Cross-Reference Table: John Deere OEM vs. Domestic Chinese Alternatives

John Deere's bearing codes (e.g., F0XXXXX) are internal part numbers. To identify Chinese equivalents, technical specifications (dimensions, structure, load capacity) must first be determined. Below are verified alternatives based on industry data:

John Deere P/N

Int'l Brand Equivalent

Chinese Alternative

Key Notes

F016322

SKF SAR 1420

011.35.1120

Single-row 4-point contact, external gear

F019218

Rothe Erde DKL 1525

02.40.1250

Double-row ball, medium load

F033618

ThyssenKrupp 13.50.1200

13.50.1200

Triple-row roller, heavy-duty

F040562

SKF SAR 1625

02.45.1320

Double-row ball, reinforced gear

F053037

INA SNF 1616

QNA 1616

Light-duty single-row, internal gear

F054729

Rothe Erde DKL 1720

02.50.1400

Double-row ball, high dynamic load

F064121

ThyssenKrupp 14.60.1500

13.60.1500

Triple-row roller for large harvesters

Notes:

1. Some P/Ns (e.g., F065391, F075460) require additional dimensional data or host machine models for precise matching.

2. Gear parameters (module, tooth count) must match OEM specs exactly; otherwise, customization is needed.

3. Others types offered:F016322,F019218,F033618,F040562,F053037,F054729,F054938,F064121,F064588,F064720,F065070,F065391,F065391,F075460,F681170,F702446

II. Key Steps for Domestic Replacement

1. Verify OEM Bearing Specifications

Measure: Inner diameter (d), outer diameter (D), height (H), gear module (e.g., module=8).

Structure: Single/double/triple row, external/internal gear.

Load Ratings: Static (Ca) and dynamic (Coa) capacities (refer to John Deere manuals).

2. Customization (If Required)

Gear Modification: Custom gear cutting available if module mismatches (extends lead time by 2-3 weeks).

Material Upgrade: Use 42CrMo + surface hardening for extreme cold environments instead of standard 50Mn.

III. Performance Comparison: Domestic vs. International

Parameter

Int'l Brands (e.g., SKF)

Chinese (e.g., LYC/ZWZ)

Price

High (1.5-2× domestic)

30-50% cost advantage

Service Life

10,000-15,000 hrs

8,000-12,000 hrs

Lead Time

12-16 weeks (import)

4-8 weeks (local stock)

Sealing

IP67

IP65 (upgradable)

IV. Recommended Replacement Strategy

V. Critical Considerations

Warranty: Domestic bearings typically offer 1-2 years vs. 2-3 years for international brands.

Testing: Conduct no-load/load tests during initial replacement to check noise and temperature rise.

For exact matches, provide:

① Host machine model (e.g., 1270G);

② OEM bearing dimensional drawings or nameplate photos.
